LAN clients connection broken, ethernet device wonky

[darkultra]

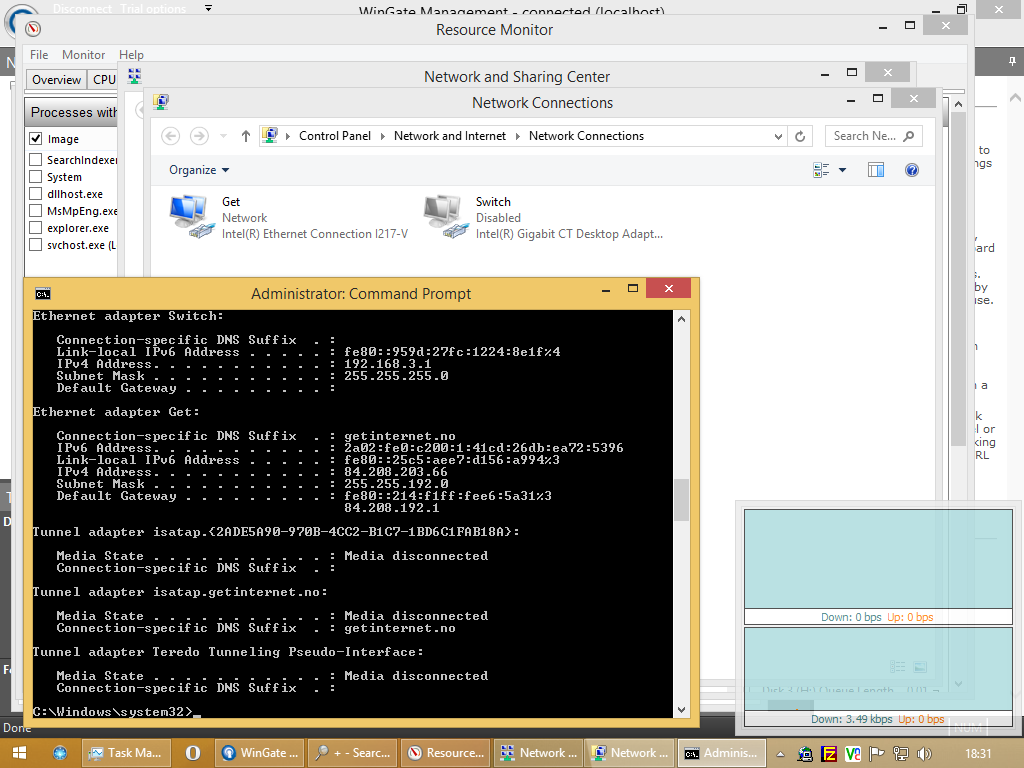

I'm not sure how to explain this but here we go. Every now and then (maybe twice a week) all LAN clients lose connectivity and the usual "limited connectivity" exclamation mark is displayed over the network icon in the notification area. The server can still connect to internet, and everything seems peachy with ipconfig.

If I reboot the Wingate server, everything is fine again. The wonky thing is if I try to disable and re-enable the local network adapter, it won't turn grey. If I try again a few times, it does turn grey, but then won't turn on again. If I now try to reboot the Wingate server it will be stuck at "Restarting ..." and I need to hit the reset button.

Specs and images:

WinGate 8.1.0 Build 4655
Pretty standard but with Proxy server removed, no firewall, no bandwidth control.
Services installed: DHCP, DNS, Remote control, SMTP delivery and schedulers
Performance counters installed but disabled/stopped.

DHCP mode: Fully automatic
ips 192.168.3.2 to 192.168.3.5 reserved for various lan clients

Operating System Microsoft Windows 8.1 Professional
DirectX 11.0
Intel Core i5-4570S
Asus H87I-Plus BIOS 0905
8GB RAM
Logitech HID-compliant G3/MX518 Optical Mouse
Intel Ethernet Connection I217-V (84.xxx.xxx.xxx) driver e1i63x64.sys 12.6.47.0
Intel Gigabit CT Desktop Adapter (192.168.3.1) driver e1q63x64.sys 12.7.27.0

Disk Drive ST3400832AS (400 GB, 7200 RPM, SATA)
Disk Drive WDC WD1002FAEX-00Z3A0 (1000 GB, 7200 RPM, SATA-III)
Disk Drive WDC WD2003FZEX-00Z4SA0 (1863 GB)
Disk Drive WDC WD2003FZEX-00Z4SA0 (1863 GB)
Disk Drive WDC WD6000HLHX-01JJPV0 (600 GB, 10000 RPM, SATA-III)
Disk Drive WDC WD740GD-00FLA0 (74 GB, 10000 RPM, SATA)

Clients OS: Windows 8.1 Professional

[adrien]

Hi

normally the message about "limited connectivity" in this case will occur if the client couldn't renew their DHCP lease. So I would look for issues logged in the DHCP service logs - you are using WinGate for the DHCP server for the LAN?

Disabling / re-enabling the network adapter can have issues on Vista and later if the engine is still running.

Regards

Adrien

[darkultra]

Success!

I swapped the server motherboard to a Asus Maximus VII Gene and it has been fine since.
